Working Principle

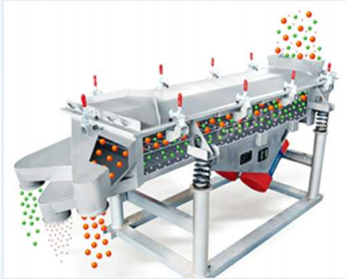

Vibrating screen is through the material in the screen surface vibration or sliding, so that the material smaller than the aperture of the screen mesh through the screen surface to be screened out, while the larger material is left on the sun surface, and then be collected. The principle is simple. Use the centrifugal force generated by the vibration motor to get the excitation force to make the screen body and the material for reciprocating up and down movement, forcing the screen body to drive the screen to do longitudinal movement, so that the material on the vibrating screen by the excitation force and the periodicity of the forward thrown out of a range, and then through the two layers of the screen screen, the material will be effectively divided into three kinds of coarse and fine grades in accordance with the range of the screen's aperture, so as to achieve the ideal screening effect.

Characteristics

1、Adopting stacked screen, the screen has long service life, preventing blockage and wear, and it is convenient and quick to touch the outline and eliminate washing.

2、Using rubber elastomer to support the screen frame, low noise in the production process. The equipment load is small, no concrete foundation is needed.

3、High efficiency and low energy consumption, the power consumption is about 20% lower than the traditional screening equipment, and there is no dust pollution in the production process. Energy saving and environmental protection

4、It is used for the grading of particles and powder and automatic pain selection.

5、Uploaded storage hopper for independent use.

6、The part in contact with raw materials is made of stainless steel to ensure that the raw materials are not contaminated.

7、Screen aperture standard configuration has Φ6, Φ2, other specifications can be customised according to customer requirements.

8、The machine is light in weight, compact in layout, small in floor space, the base is equipped with movable wheels, easy to move.

9, the appearance of off-look generous, durable, fully sealed design. No dust pollution when working.

10, impurity coarse material automatically discharged, can achieve automatic operation.

11, compact and durable design. Easy to operate, less failure, easy maintenance, easy to repair.

12、Safety protection device to ensure the safety of the operator and machine equipment.

13, All parts and machines can be customised according to requirements.

Range of application

Automated operation, capable of screening and grading granular materials and powder materials. It is suitable for rubber, plastic and granule grading. Vibrating screen is widely used in many industries such as rubber, chemical, food, medicine, environmental protection, construction and abrasive industry.

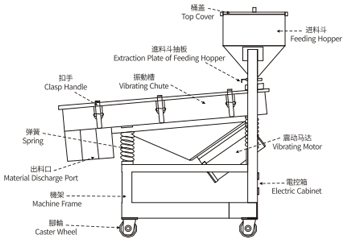

Structure

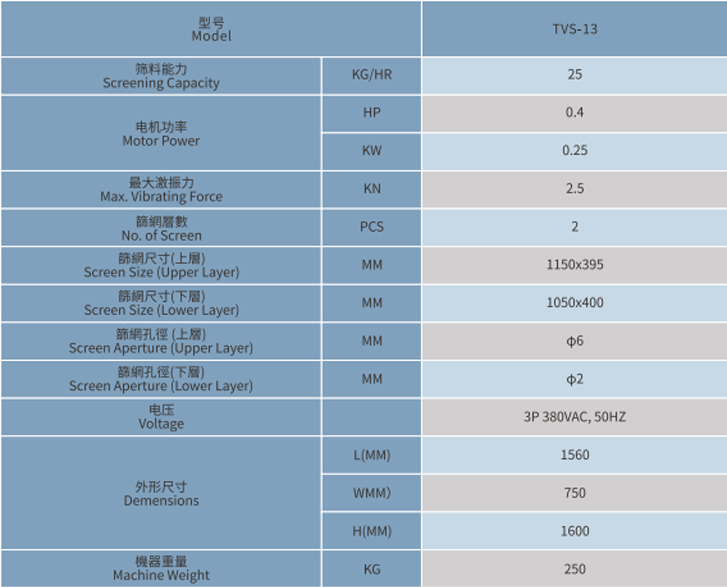

Product Specification Sheet
